Hydrogen Purification 5A

Molecular sieve 5A for hydrogen purification, also called PSA molecular sieve 5A, is an excellent adsorbents speically desinged for PSA hydrogen purification.

We're here to help:Easy ways to get the answers you need.

  • Product Description
  • Technical Specification

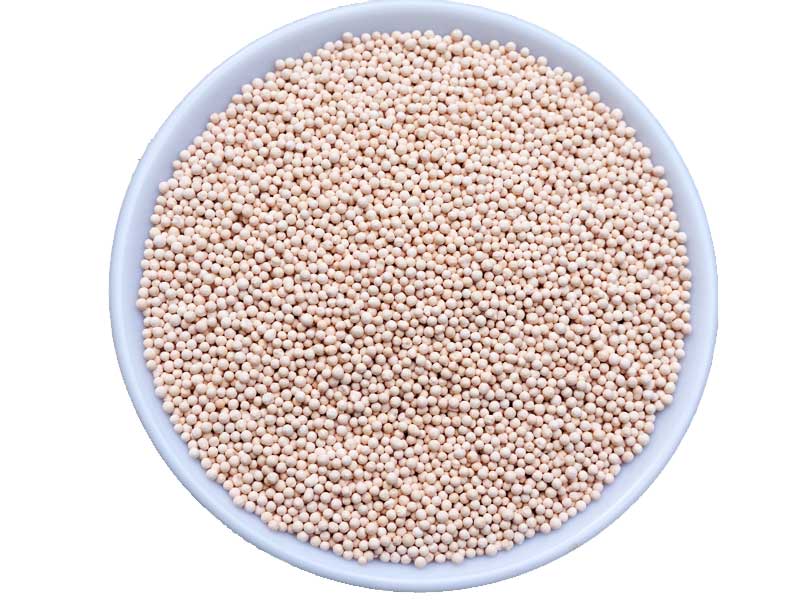

Standard molecular sieve 5A is made from zeolite powder 5A (>70%) and binder. Binder is clay, which has little adsorption capacity. Binderless 5A transforms clay binder to zeolite 5A. That means zeolite 5A composition in binderless molecular sieve 5A is 100%, that greatly increased its adsorption capacity. Hydrogen purification molecular sieve 5A is normally used in PSA hydrogen purification. Hydrogen purification 5A has the advantages of a large adsorption capacity, fast adsorption&desorption rate and high mechanical strength. Hydrogen purification molecular sieve 5A greatly increased the CO, N2 and CH4 adsorption capacity than standard molecular sieve 5A, which makes it an excellent adsorbents for PSA hydrogen purification process.  Hydrogen purification molecular Sieve 5A have the shape of beads with diameter 1.6-2.5 mm (8x12 mesh).


More Details:

1. Synonym: PSA 5A

2. Typical Chemical Formula: Ca4,5 [(Al02)12(SiO2)12].nH2O

3. CAS NO.: 1318-02-1

4. Silica-alumina ratio: SiO2/ Al2O3≈2


Application:

1. Hyrogen purification molecular sieve 5A is used for hydrogen Purification by PSA method

2. Hyrogen purification molecular sieve 5A can also be used in PSA oxygen concentrator


Stroage:

Keep hydrogen purification molecular sieve 5A in an air tight container until ready for use to avoid unintended moisture adsorption.


Regeneration & Activation:

Hyrogen purification molecular sieve 5A can be regenerated or activated either thermal regeneration method(Thermal Swing Adsorption, TSA); To remove moisture from a Hyrogen purification molecular sieve 5A, a temperature of 200-230℃ (390-570°F)is required. Hyrogen purification molecular sieve 5A can also be regnerated by lowering the pressure in the case of pressure swing processes (PSA). A properly regenerated molecular sieve can give moisture dew points below -100℃. The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process.

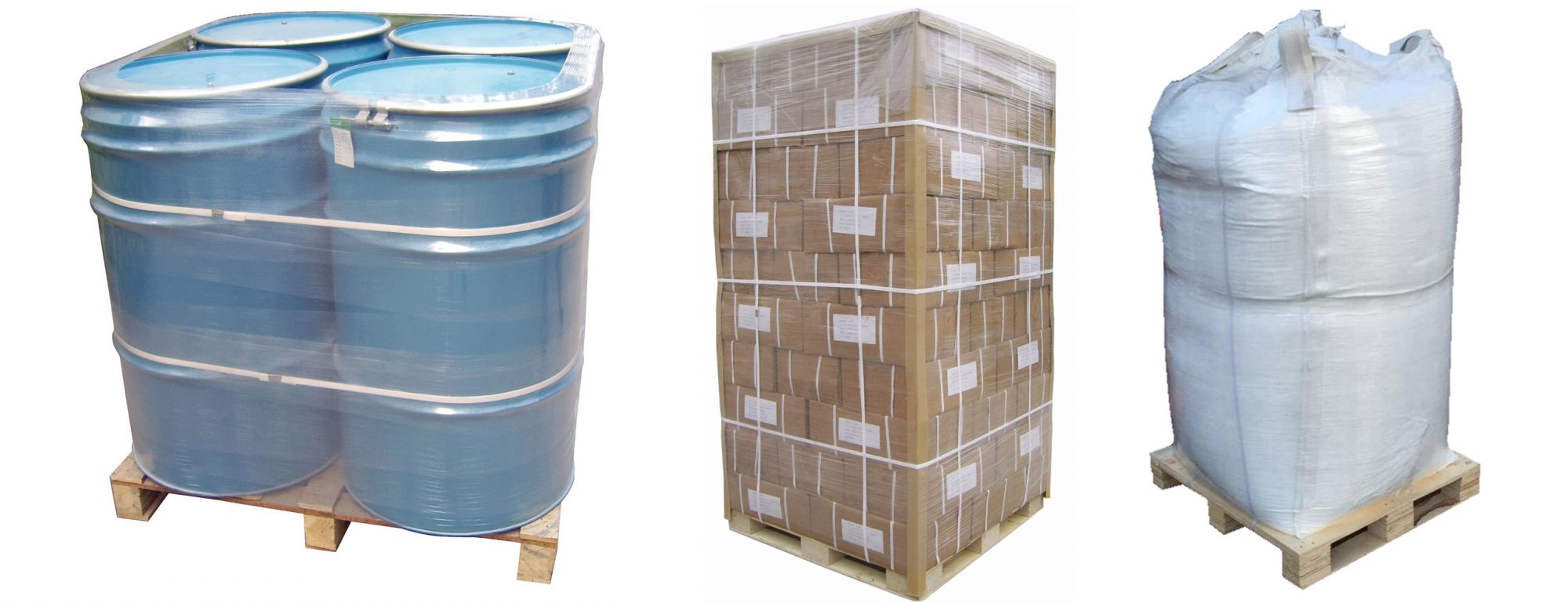

Packing:

Send us email if you need hyrogen purification molecular sieve 5A isotherm and MSDS.

Molecular Sieve Hydrogen Purification Molecular Sieve 5A Specification
Property Unit 8X12
Diameter mm 1.6-2.5
Static Water Adsorption wt% ≥24.00
N2Adsorption ml/g ≥10.00
CO Adsorption ml/g ≥26.00
Bulk Density g/ml ≥0.70
Crush Strength N ≥25
Loss on Ignition wt% ≤1.50
