Molecular Sieve 3A

Molecular Sieve 3A is an alkali metal aluminosilicate; Molecular sieve 3A is the potassium form of the type A crystal structure. Molecular sieve 3A adsorbs molecules with effective diameters small than 3 anstrom (0.3nm) such as water and exclude molecular

We're here to help:Easy ways to get the answers you need.

  • Product Description
  • Technical Specification

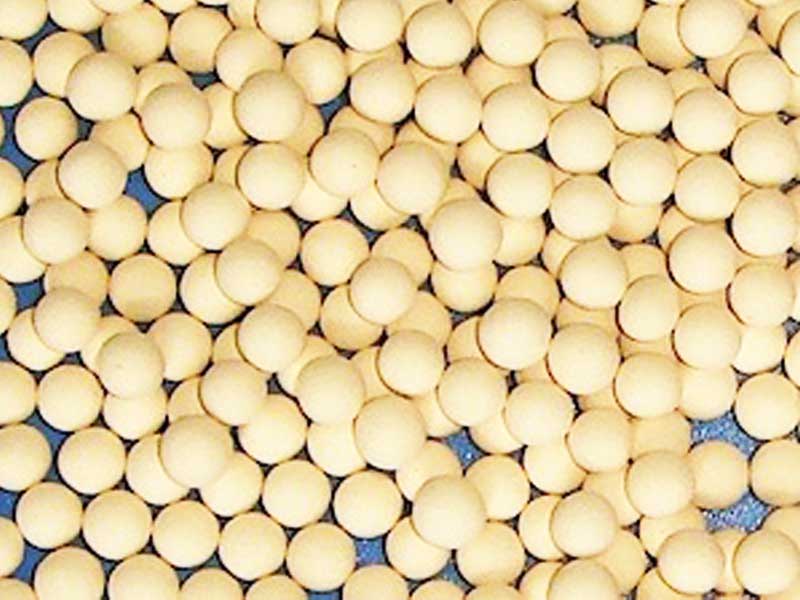

Molecular Sieve 3A is made from zeolite powder 3A (>70%) and binder. Zeolite powder 3A is a potassium based type A zeolite, which is generated by replacing part of sodium cation in 4 angstrom sieve. Molecular sieve 3A is usually used for dehydration. Since it only adsorb molecule with diameter less than 3 anstroms. Molecular sieve 3A is a perfect adsorbent if you only want to remove water from gas mixture in most condition. Molecular Sieve 3A have the shape of beads and pallets.


More Details:

Synonym: Zeolite 3A, Molsive 3A, Zeolith 3A

Typical Chemical Formula: 0,45 K2O . 0,55 Na2O . Al2O3 . 2 SiO2 . n H2O

CAS NO.:  1318-02-1

Silica-alumina ratio: SiO2/ Al2O3≈2


Application:

1. Zeolite molecular sieve 3A is used for drying of unsaturated hydrocarbons (e.g. ethylene, propylene, butadiene)

2. Zeolite molecular sieve 3A is used in deep desiccation of cracked petroleum gases, such as ethylene, propylene, butadiene, acetylene and natural gas, and of polar liquid, such as ethanol, LPG and solvent

3. Zeolite molecular sieve 3A is used in drying of natural gas, if COS minimization is essential, or a minimum co-adsorption of hydrocarbons is required

4. Zeolite molecular sieve 3A is used in drying of highly polar compounds, such as methanol and ethanol

5. Zeolite molecular sieve 3A is used in drying of refrigerants (e.g. R22, R134a etc)

6. Zeolite molecular sieve 3A is used in dehydration of benzene, toluene, xylene and other solvents

7. Zeolite molecular sieve 3A is used in static, (non-regenerative) dehydration of insulating glass units



Storage:

Keep 3A molecular sieve in an air tight container until ready for use to avoid unintended moisture adsorption.


Regeneration&Activation:

Molecular sieve 3A can be regenerated or activated either thermal regeneration method(Thermal Swing Adsorption, TSA); To remove moisture from a 3A molecular sieve, a temperature of 200-230°C (390-570°F)is required. Molecular sieve 3A can also be regnerated or activated by lowering the pressure in the case of pressure swing processes (PSA). A properly regenerated or activated molecular sieve can give moisture dew points below -100°C. The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process.


Packing

150 kg/drum, 25kg/carton, supersack

Send us email if you need molecular sieve 3A isotherm and MSDS.



Molecular Sieve 3A Specification

Property Unit Beads Beads Pellets Pellets
Diameter mm 1.6-2.5 3.0-5.0 1.5-1.8 2.8-3.2
Static Water Adsorption wt% ≥21.00 ≥21.00 ≥20.00 ≥20.00
Bulk Density g/ml ≥0.70 ≥0.70 ≥0.65 ≥0.65
Crush Strength N ≥30.00 ≥80.00 ≥30.00 ≥70.00
Losson Attrition wt% ≤0.10 ≤0.10 ≤0.30 ≤0.30
Loss on Ignition wt% ≤1.50 ≤1.50 ≤1.50 ≤1.50
